QED Fluid Warming Cabinets Specification & Dimensions

Here you will find all of the information regarding the specifications and dimensions for the QED Fluid Warming Cabinets.

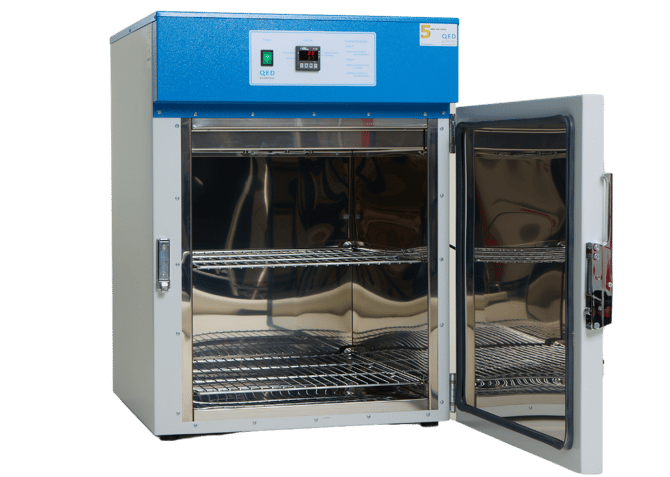

WC inside

Standard Specification:

The standard specification for all QED Fluid Warming Cabinets includes:

  • Shelves
  • Digital display
  • Exact temperature setting
  • Emergency shut-off

Optional Extras:

QED Fluid Warming Cabinets can include the following optional extras upon request:

  • Baskets for storing fluid bags
  • Lever locking handle (Models FW130 and larger include this as standard)
  • Digital door lock
  • Glazed door viewing panel (not available on size 40 cabinets)
  • Stainless steel exterior
  • Mobile stand with wheels (For models FW40 - FW350, excluding FW52 & FW340)
  • Mobile stand without wheels (For models FW-40 - FW350, excluding FW52 & FW340)
  • Lockable wheels (Models FW340 and larger include this as standard)
  • Audible overheat alarm
  • Wall mounting (Available FW40 & FW50 only. As standard, FW52/WALL is wall mounted only).

Please note, optional extras are available for an additional cost (other than where mentioned as being included as standard for certain models).

Dimensions:

Model Shelves

Internal
H x W x D (MM)

External
H x W x D (MM)

Empty Weight
(KG)
Full Weight
(KG)
FW40-ECO 1 320 x 315 x 315 670 x 415 x 422 25 34
FW50-ECO 1 240 x 490 x 315 625 x 590 x 422
30 45
FW52-ECO/WALL 2 470 x 490 x 195 845 x 590 x 300 35 55
FW75-ECO 1 248 x 490 x 460 625 x 590 x 565 35 60
FW120-ECO 1 360 x 490 x 550 735 x 590 x 660 45 75
FW130-ECO 2 470 x 490 x 460 845 x 620 x 570 45 95
FW150-ECO 2 470 x 490 x 550 845 x 620 x 660

50

110

FW210-ECO 2 582 x 490 x 640  957 x 650 x 750

65

135

FW240-ECO 3 803 x 490 x 550  1180 x 620 x 660

73

163

FW280-ECO/WH 2 566 x 650 x 660 940 x 780 x 780

78

176

FW340-ECO/WH 4 1095 x 590 x 550 1485 x 730 x 660

95

239

FW350-ECO/WH 3 729 x 650 x 660 1105 x 780 x 780

95

242

FW355-ECO/WH 5 1345 x 490 x 550 1735 x 620 x 660

95

245

FW420-ECO/WH 4 1335 x 775 x 550 1725 x 870 x 650

125

317

FW440-ECO/WH 5 1345 x 590 x 550 1735 x 730 x 660

105

285

FW575-ECO/WH 5 1350 x 775 x 550 1750 x 870 x 650

135

375
