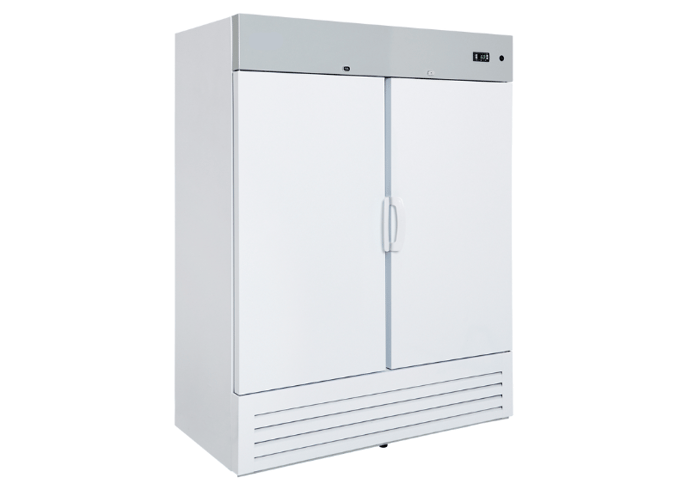

Temperature Controlled Cabinets

QED CRT Cabinets Specification & Dimensions

Here you will find all of the information regarding the specifications and dimensions for the QED CRT Cabinets.

Standard Specification:

15°C–25°C Operating Temperature Range

Digital Display

Solid or Glazed Doors (size depending)

Eco-Friendly Refrigerants

Optional Extras:

Fitted Internal Controlled Drugs Unit

Dimensions:

Model Door
(Solid)    (Glass)
Litres Shelves Internal (mm)
(H x W x D)
External (mm)
(H x W x D)
Weight (kg) CD Option
CRT30 S G 30 2 400 x 345 x 190 535 x 445 x 485 26 NO
CRT60 S G 60 3 590 x 345 x 330 725 x 445 x 485 28 NO
CRT150 S G 150 3 680 x 490 x 400 820 x 595 x 595 38 NO
CRT300 S G 300 6 1360 x 490 x 500 1500 x 595 x 650 64 NO
CRT400 S G 400 6 1730 x 490 x 400 1840 x 595 x 695 74 NO
CRT410 S   410 3 1233 x 480 x 540 1950 x 600 x 745 90 YES
CRT500 S G 500 6 1530 x 1180 x 609 1620 x 1230 x 655 130 NO
CRT640 S   640 3 1395 x 610 x 635 2130 x 730 x 845 120 YES
CRT900 S   900 6 1333 x 490 x 540 (2) 1950 x 1200 x 745 135 YES
CRT1250 S   1250 6 1393 x 547 x 635 (2) 2130 x 1314 x 845 185 YES
CRT1390 S   1390 9 1233 x 490 x 540 (3) 1950 x 1800 x 745 180 YES
